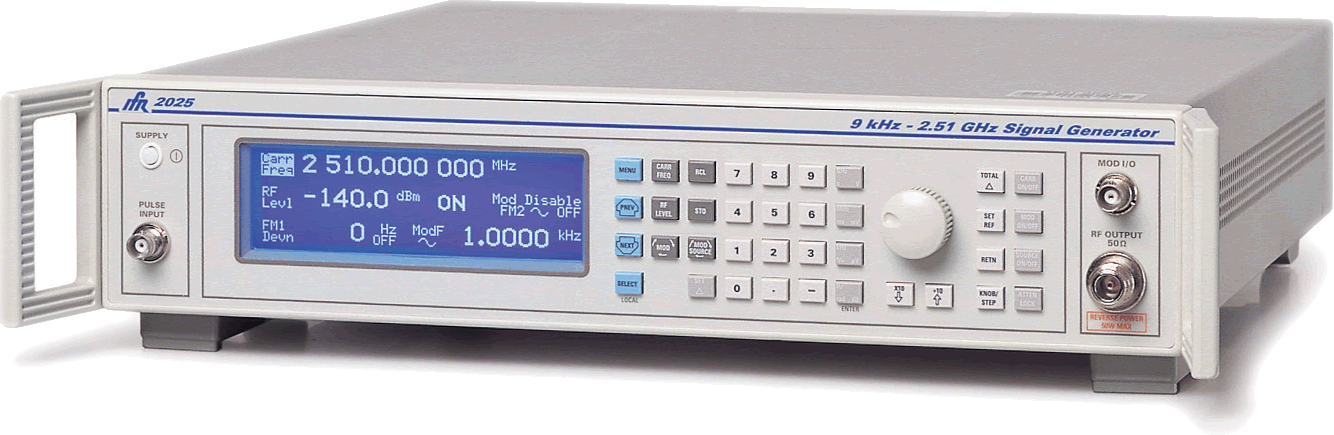

• Wide frequency coverage:-
9 kHz to 1.2 GHz (2023A)
9 kHz to 2.05 GHz (2023B)
9 kHz to 2.51GHz (2025)
• Excellent spectral purity
• Linear and logarithmic sweep mode
• RPP to 50 W
• Sine, triangular and square wave two tone modulation source
• RS-232 and GPIB control
• Comprehensive modulation:- AM, FM, ∅ M , Pulse & FSK
• 3.9 kHz Bessel filtered FSK
• Optional +25 dBm RF output
• SINAD Measurement Option
| Desctiption | Size |
|---|---|
| Aeroflex 2023A/B, 2025 Data Sheet | 593Kb |
- Parent Category: Aeroflex Products

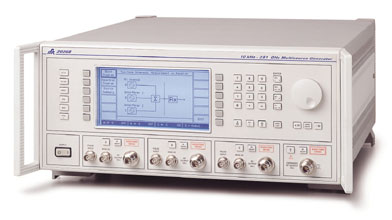

Up to three fully functional signal generators in one unit offering a unique solution for complex tests on receivers, components and systems.
- Two or three high-quality RF signal generators in a space efficient format
- Ideal for intermodulation and receiver characterization
- Wide frequency coverage:
-- 10 kHz to 2.05 GHz - Support for an external signal generator
- +24 dBm RF output for effective component testing
- Application-specific test modes simplify measurement procedures
- User-defined tracking between signal sources
- Adjustable carrier phase to allow peaking of three tone intermodulation
- Built-in switched combiner network improves measurement uncertainty
- Option 116 - adds GSM capability
- Option 117 - adds Bluetooth & GSM
- Option 118 - adds Fast Pulse Modulation
| Desctiption | Size |
|---|---|
| Aeroflex 2026A Data Sheet | 186Kb |
- Parent Category: Aeroflex Products

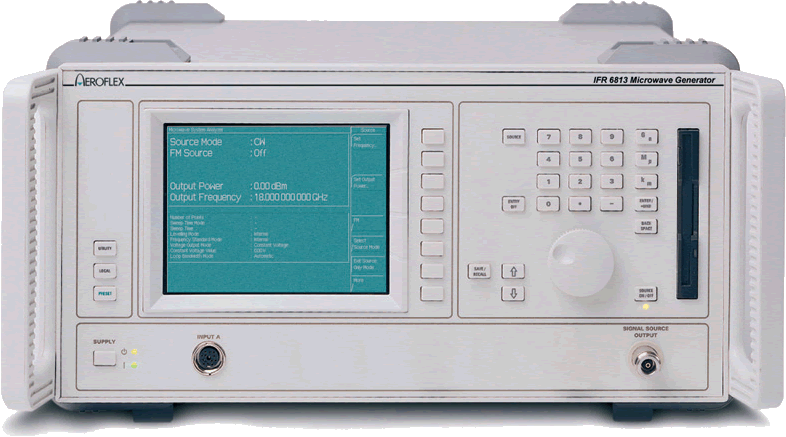

Low Phase Noise Synthesized Source with 1 Hz resolution
The 6813A (10 MHz to 20 GHz) and 6815A (10 MHz to 40 GHz) microwave generators have been developed from the successful 6820A series of microwave scalar analyzers but the performance specifications of the source have been re-qualified for phase noise both closer in and further out.
- 20 GHz and 40 GHz versions
- Swept, CW and CW list modes
- External FM standard
- Internal FM option
- Internal pulse modulation option
- Optional step attenuators
- Optional trigger board
- Modular design for rapid service
Microwave Mixer Measurement System
This measurement system, based around the IFR 6800A series RF & Microwave Scalar and System Analyzers and the 6813A microwave generator, is designed to provide selective measurements of mixers and frequency converters during alignment and testing. The 6813A acts as the local oscillator input for the mixer under test while the 6840A series unit provides both the mixer RF input and the receiver for the IF output port.
| Desctiption | Size |
|---|---|
| Aeroflex 6810A Series Data Sheet | 636Kb |
- Parent Category: Aeroflex Products

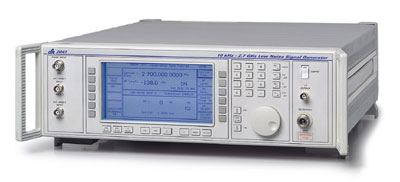

A high-performance signal generator with programmable modulation sources and LF output, wide modulation bandwidths, sweep capability and excellent accuracy.
- Wide band cover:
-- 10 kHz to 1.35 GHz (2030)
-- 10 kHz to 2.7 GHz (2031)
-- 10 kHz to 5.4 GHz (2032)
- 0.1 Hz frequency resolution
- 0.1 Hz to 500 kHz modulation oscillator
- Wide band FM with 10 MHz bandwidth
- Single, dual, composite and dual composite modulation modes
- GPIB programming (IEEE 488.2 standard)
- Simple operation through menu selection of modes
| Desctiption | Size |
|---|---|
| Aeroflex 2030 Series Data Sheet | 363Kb |
