Synthesized signal source, spectrum analyzer and scalar analyzer in a single instrument.

• 9 variants covering 1 MHz to 46 GHz
• 6841A 1 MHz to 3 GHz Scalar Analyzer with 4.2 GHz Spectrum Analyzer
  6842A 10 MHz to 8.4 GHz Scalar Analyzer with 20 GHz Spectrum Analyzer
  6843A 10 MHz to 20 GHz Scalar Analyzer with 20 GHz Spectrum Analyzer
  6844A 10 MHz to 24 GHz Scalar Analyzer with 24 GHz Spectrum Analyzer
  6845A 10 MHz to 46 GHz Scalar Analyzer with 46 GHz Spectrum Analyzer
  6845AR 10 MHz to 40 GHz Scalar Analyzer with 40 GHz Spectrum Analyzer
  6846A 10 MHz to 8.4 GHz Scalar Analyzer with 24 GHz Spectrum Analyzer
  6847A 10 MHz to 20 GHz Scalar Analyzer with 26.5 GHz Spectrum Analyzer
  6848A 1 MHz to 3 GHz Scalar Analyzer with 20 GHz Spectrum Analyzer

• Group delay option tests through frequency conversion systems and components
• Offset gain compression facility for testing of mixers and frequency converters
• USB for results transfer, storage and printing
• Dual channel display for simultaneous wide and narrow band measurements
• Comprehensive marker functions
• Modular design for rapid service
• Microwave Mixer Measurement System
  This measurement system, based around the IFR 6800A series RF & Microwave Scalar and System Analyzers and the 6813A microwave generator, is designed to provide selective measurements of mixers and frequency converters during alignment and testing. The 6813 acts as the local oscillator input for the mixer under test while the 6840A series unit provides both the mixer RF input and the receiver for the IF output port.

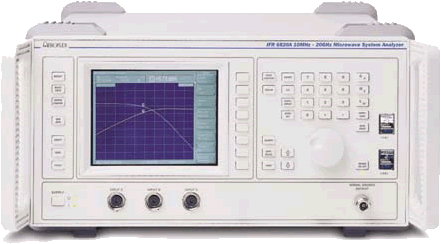

Aeroflex has taken the instruments that form a microwave test bench and combined them into a single unit. The result is the 6800A series: a unique product - integrating a signal source, spectrum analyzer and three-input scalar analyzer that allows more tests to be performed faster and more precisely than ever before.

The 6800A is more than simply unique: it is the world's most comprehensive RF and microwave component and subsystem analyzer. The signal source can be used as a simple CW output, as a swept source for network measurements or, uniquely, as a tracking generator with any frequency offset. This power and versatility makes the 6800A the first choice for RF and microwave component and subsystem testing.

Spectrum Analyzer

• 3 MHz to 1 kHz resolution filters
• 80dB instantaneous distortion-free dynamic range
• Autotune mode for fast signal location
• High dynamic range scalar measurement with tuned receiver
• Full span tracking generator with offset tracking capability
• Integral frequency counter for accurate signal identification

Scalar Analyzer

• Fast sweep speeds for tuning and alignment
• EEPROM corrected scalar detectors for precision scalar measurements
• Accurate return loss measurements with 40 dB directivity autotesters
• AC and DC detection modes to maximize dynamic range
• Power sweep for amplifier compression measurements
