Parent Category: Aeroflex Products

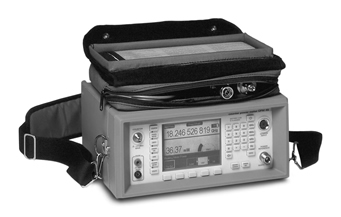

• Combined Frequency Counter and Power Meter in one unit
• Two models available:
10 MHz to 20 GHz (CMP 20)
10 MHz to 46 GHz (CMP 46)
• Large, easy to read screen allows simultaneous display of both power and frequency measurements
• Built-in DVM for AGC voltage measurements
• Designed for use in the field, weighing only 4.9 kg (10.8 Ib) and battery operated
• Supported by the full range of Aeroflex power sensors

Parent Category: Aeroflex Products

A precision Power Meter with comprehensive GPIB facilities for ATE requirements and standard
bench applications

• Extensive frequencyco verage: 30 kHz to 46 GHz
• Wide dynamic range: -70 dBm (100 pW) to +44 dBm (25W)
• Fast response on GPIB of 25 ms
• Auto averaging with manual override
• Both 50 Ohm and 75 Ohm sensors
• Low sensor VSWR reduces measurement uncertainty
• Sensor linearitycorrection for improved accuracy
• Maximum hold facility
• Optional DC operation
• Non-volatile memory

Parent Category: Aeroflex Products

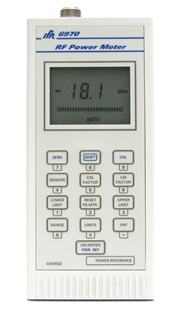

• Hand-held for portability
• Battery powered for field use
• Wide frequency range: 30 kHz to 46 GHz
• Analog bargraph
• Excellent accuracy traceable to National
Standards
• Power levels from -70 dBm
(100 pW) to +44 dBm (25W)
• Internal power reference
• Audible Pass/Fail limits alarm
• Rugged case
• Four digit display
